KQ2S-U

KQ2S-U
KQ2S-U

Uni One-touch fitting

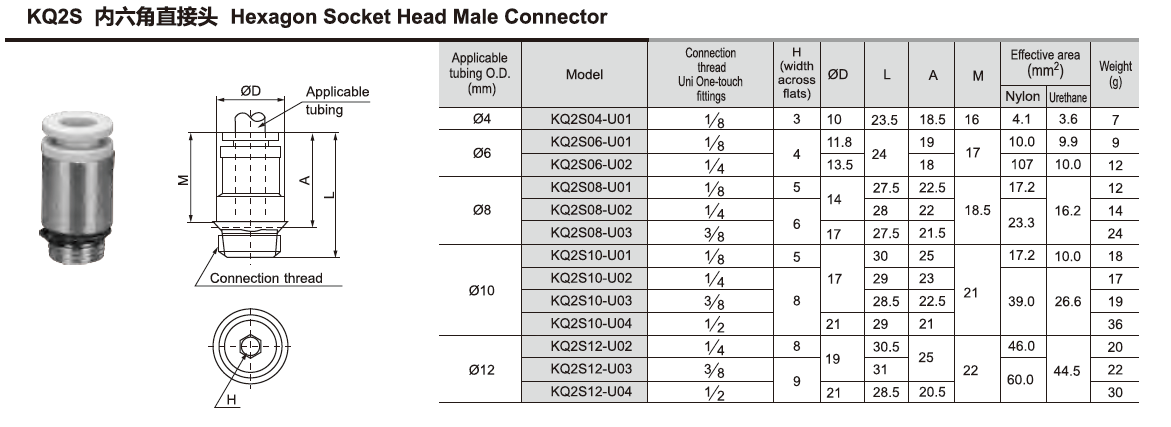

Hexagon Socket Head Male Connector KQ2S-U

Characteristic

Can be installed to various threads, such as NPT,PF,PT,BSP etc.
Space-saving.



Specifications

Fluid Air/water
Material Brass
Maximum operating pressure 1.0MPa
Operating Vacuum pressure -100KPa
Proof Pressure 3.0MPa
Ambient and fluid temperature Air:-5~60℃,Water:0~40℃
Tubing material Nylon,Softnylon,Polyurethane
Tubing O.D. ø4,ø6,ø8,ø10,ø12,ø16



How to order


Dimensions

ADD TO ENQUIRY
Prev:KQ2H-U Next:KSH
